Mock Servers — Product Documentation

📋 Overview

What Mock Servers Are

Mock Servers let you simulate REST and SOAP APIs without needing the real backend. Teams can:

Define endpoints with different request/response mappings
Create multiple mock scenarios for a single endpoint (simulate variants, error codes, edge cases)
Mock using JSON (REST) or XML (SOAP)
Configure request bodies, responses, query params, XPath rules, and status codes
Quickly prototype, test client apps, and validate integrations

🚀 Quick Start

Steps:

Go to web.e2etestautomation.com and log in
Navigate to Mock Servers → New Mock Server
Choose Protocol: REST or SOAP
Define the endpoint and add Mock Scenarios
For REST: configure request body, response body, query params
For SOAP: configure Request Level or XPath Level scenarios with XML
Save and start the mock server → test from Postman, curl, or your client app

🔑 Core Concepts

Mock Server – A virtual server hosting mock APIs
Mock Scenario – A mapping of request → response (with variations). Multiple scenarios can exist for the same endpoint
REST Mock – JSON request/response with optional query params
SOAP Mock – XML request/response; supports request‑level or XPath‑level configuration
Supported Methods – REST (all), SOAP (only GET and POST)

🛠️ Mock Servers by Type

REST Mock Servers

Request body (JSON) – define expected input
Response body (JSON) – define what to return
Query params – simulate different responses for different query params
Multiple scenarios – each scenario can define different request/response pairs for the same endpoint

Example REST Mock Scenario:


// Request body
{
  "userId": "123"
}

// Response body
{
  "name": "John Doe",
  "status": "active"
}

// Query param: ?verbose=true
{
  "name": "John Doe",
  "status": "active",
  "details": { "email": "john@example.com" }
}

SOAP Mock Servers

Supports GET and POST only.

Types of SOAP mock scenarios:

1. Request Level

Works on full XML request/response. Example: same request body → different response body/status code.


<!-- Request -->
<Envelope>
  <Body>
    <GetUser>
      <UserId>123</UserId>
    </GetUser>
  </Body>
</Envelope>

<!-- Response -->
<Envelope>
  <Body>
    <GetUserResponse>
      <Name>John Doe</Name>
      <Status>Active</Status>
    </GetUserResponse>
  </Body>
</Envelope>

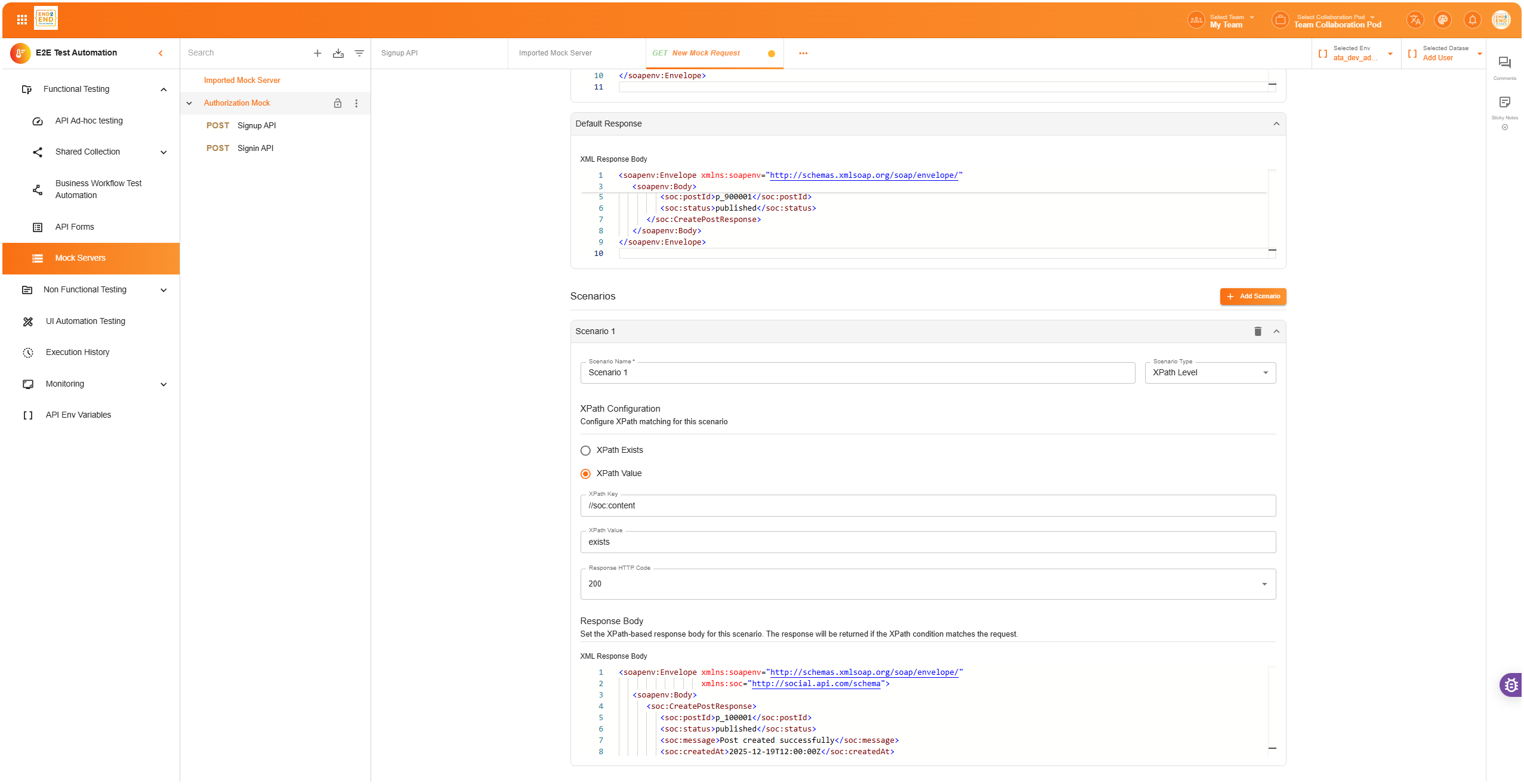

2. XPath Level

Allows conditional mocking based on XPath expressions. Two types:

XPath Exists → return response if element exists
XPath Value → return response if element value matches

Example (XPath Value):

Rule: //UserId = 123

Response:


<Envelope>
  <Body>
    <GetUserResponse>
      <Name>John Doe</Name>
      <Status>Active</Status>
    </GetUserResponse>
  </Body>
</Envelope>

📝 Mock Scenarios in Detail

Each mock scenario defines:

Request matcher:

REST → request body (JSON), query params
SOAP → request body (XML), or XPath rules

Response definition:

Response body (JSON/XML)
Status code (200, 400, 500 etc.)
Optional headers

Variants:

Create multiple scenarios for the same endpoint to simulate success, error, timeout, or custom flows

📖 Workflow Examples

REST Example

Endpoint: POST /users
Scenario 1 → request { "userId": "123" } → response 200 { "status": "active" }
Scenario 2 → request { "userId": "999" } → response 404 { "error": "Not Found" }

SOAP Example

Endpoint: POST /soap/users
Scenario 1 (Request Level): match full request body for <UserId>123</UserId> → return 200 OK XML
Scenario 2 (XPath Value): //UserId[text()='404'] → return 404 Not Found XML response

✅ Best Practices

For REST, keep request/response schemas consistent with your real API
Use query params to model different filters/states
For SOAP, prefer XPath Value rules for precise matching
Limit scenarios to realistic cases (success, common error codes, edge cases)
Document each scenario (purpose, when to use) for collaboration

🔧 Troubleshooting

Scenario not matching – Check request body/params vs scenario definition
SOAP mock not triggering – Ensure method is GET or POST only
XPath not working – Validate syntax and that XML namespaces are handled correctly
Multiple matches – The first matching scenario wins → order scenarios carefully

❓ FAQs

Q: Can I create multiple scenarios for the same endpoint? A: Yes, unlimited. Each defines different request/response pairs.

Q: Does E2E Test Automation support PUT/DELETE for SOAP mocks? A: No, only GET and POST.

Q: What format do I use for REST vs SOAP? A: REST → JSON, SOAP → XML.

Q: Can I return different status codes? A: Yes, configure per scenario (e.g., 200, 400, 500).

Q: Which takes priority if multiple SOAP rules match? A: Scenarios are checked in order; the first match wins.

✅ Summary

Mock Servers let you quickly spin up simulated REST and SOAP endpoints with full control over request matching and responses. Perfect for prototyping, testing, and collaboration without relying on live backends.
