Business Workflow Test Automation - Overview

What is Business Workflow Test Automation?

Business Workflow Test Automation in E2E Test Automation is a powerful feature that allows you to automate complete business processes end-to-end by connecting both UI and API testing in a single, cohesive workflow. Instead of testing APIs and user interfaces in isolation, you can now validate entire business processes that span multiple systems, services, and user interactions—just as they occur in real-world scenarios.

Think of it as orchestrating a symphony: each instrument (API call, UI interaction, database query, email notification) plays its part at the right time, in the right sequence, creating a harmonious end-to-end business process.

The Problem: Testing in Silos

Traditional testing approaches separate different aspects of your application:

API Testing:

Tests backend services independently
Validates data processing and business logic
Ensures APIs respond correctly

UI Testing:

Tests user interface interactions
Validates that users can navigate and interact
Ensures visual elements work correctly

The Gap:

No end-to-end validation of complete business processes
Missing integration points between UI and API
Cannot test realistic scenarios that span multiple systems
Difficult to validate multi-step workflows that involve different technologies
Time-consuming to manually coordinate different test types

Real-World Example:

A complete e-commerce order process might involve:

User searches for product (UI interaction)
System queries product database (API call)
User adds item to cart (UI interaction)
Cart service updates (API call)
User proceeds to checkout (UI interaction)
Payment service processes payment (API call)
Order service creates order (API call)
Email notification sent (Email service)
User sees confirmation (UI validation)

Testing each piece separately misses critical integration points where things often break.

The Solution: Business Workflow Test Automation

Business Workflow Test Automation bridges this gap by allowing you to:

Connect Multiple Testing Types:

Combine UI automation with API testing in one workflow
Add database queries to validate data
Include email notifications and validations
Integrate external service calls
Coordinate timing and dependencies

Model Real Business Processes:

Represent actual business workflows visually
Include conditional logic and branching
Handle timeouts and asynchronous operations
Validate data flows between systems
Ensure end-to-end process integrity

Automate Complex Scenarios:

Multi-step approval processes
Order fulfillment workflows
User registration and verification
Payment processing with notifications
Data synchronization across systems

Key Concepts

Workflows

A workflow is a visual representation of your business process, consisting of connected nodes that execute in sequence or based on conditions.

Components of a Workflow:

Nodes: Individual steps in the workflow (API calls, UI tests, conditions, etc.)
Connections: Links between nodes that define the execution flow
Variables: Data passed between nodes
Conditions: Logic that determines which path to take
Scripts: Custom logic executed before or after node execution

Example Workflow:


Start
  ↓
[UI Test: User Login]
  ↓
[HTTP Request: Get User Profile]
  ↓
[Conditional: Check Account Status]
  ├─ Active → [Continue to Dashboard]
  └─ Inactive → [Send Activation Email]

Nodes

Nodes are the building blocks of workflows. Each node represents a specific action, test, or decision point in your business process.

Available Node Types:

Simple Conditional - Basic if/then logic
Event Conditional - Time-based conditional logic
Signal - Trigger signals to coordinate workflows
Wait Activity - Pause execution for a specified duration
HTTP Request - Make API calls
Compliance Approval - Send approval emails with timeout
External TC Execution - Execute external test cases via webhook
SES Email - Send emails using AWS SES
UI Test - Execute UI automation scenarios
Database - Run database queries
Loop Over Items - Repeat actions multiple times

Each node type serves a specific purpose in orchestrating your business workflow.

Node Configuration

Every node in the workflow has three configuration tabs:

Parameters Tab:

Node-specific settings and inputs
Configuration required for the node to execute
Varies by node type

Pre-Script Tab:

JavaScript code executed before the node runs
Used for setup, data preparation, or validation
Can set variables, manipulate data, or add conditional logic

Post-Script Tab:

JavaScript code executed after the node completes
Used for validation, data extraction, or cleanup
Can capture results, set variables, or perform assertions

Variables and Inputs

Workflows use variables to pass data between nodes:

Variable Syntax:


${inputs.variable1}
${inputs.userId}
${inputs.orderTotal}
${inputs.confirmationEmail}

Use Cases:

Pass data from one node to another
Use API response values in subsequent UI tests
Store extracted data for later validation
Share configuration across multiple nodes

Example:


Node 1: HTTP Request - Create User
  Post-Script: Extract userId from response
  Variable: ${inputs.userId}

Node 2: UI Test - Login with New User
  Parameters: Use ${inputs.userId} in login form

Node 3: HTTP Request - Get User Profile
  Parameters: Use ${inputs.userId} in API endpoint

The Workflow Interface

Business Workflow Test Automation provides two main views:

1. Modeler

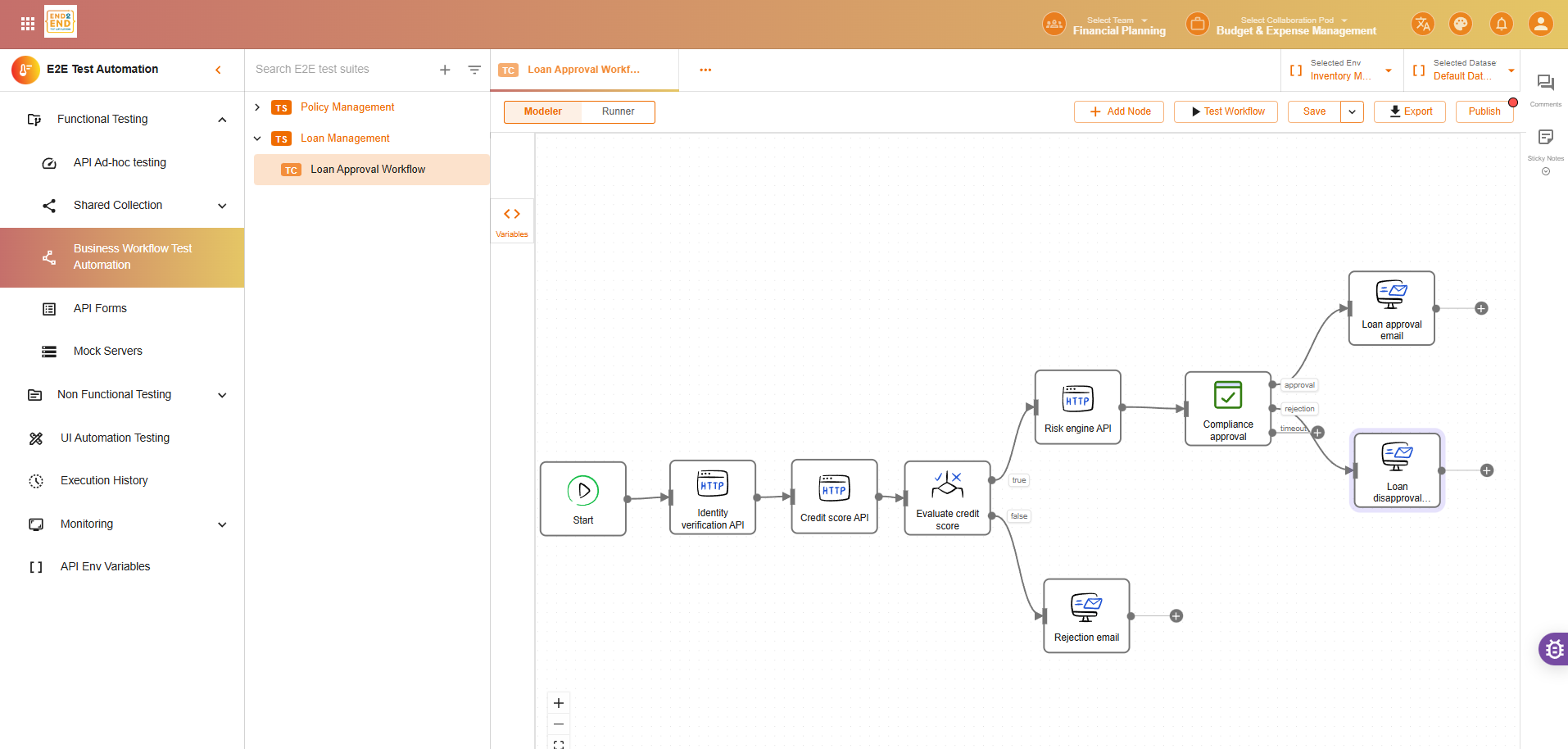

The Modeler is the visual workflow designer where you create and configure your workflows.

Features:

Visual canvas for designing workflows
Drag-and-drop interface for adding and connecting nodes
Node library with all available node types
Connection tools for linking nodes together
Properties panel for configuring selected nodes
Zoom and pan for working with large workflows
Save and version control for workflow management

Workflow Creation Process:

Open the Modeler
Drag nodes onto the canvas
Configure each node (parameters, scripts)
Connect nodes to define flow
Add conditionals and loops as needed
Validate the workflow
Save and test

2. Runner

The Runner is where you execute workflows and monitor their progress.

Features:

Execution controls (start, stop, pause)
Real-time progress tracking showing which node is executing
Run history with all past executions
Detailed logs for each node execution
Variable inspection to see data flow
Error reporting with stack traces and context
Performance metrics (execution time per node, total workflow time)

Execution Monitoring:

See which node is currently executing
View node status (pending, running, completed, failed)
Inspect variables and outputs in real-time
Access logs for troubleshooting
Track overall workflow progress

How Business Workflows Work

Execution Flow

Workflow Starts:
- Initial node begins execution
- Variables are initialized
- Pre-scripts run if configured
Node Execution:
- Pre-script executes (if defined)
- Node performs its action (API call, UI test, etc.)
- Post-script executes (if defined)
- Results and variables are captured
Flow Control:
- Conditionals evaluate and determine next path
- Loops iterate as configured
- Signals coordinate between parallel paths
- Wait activities pause execution as needed
Data Flow:
- Variables pass data between nodes
- Outputs from one node become inputs to another
- Scripts can manipulate and validate data
- State is maintained throughout execution
Workflow Completion:
- Final node completes
- Overall status is determined (success/failure)
- Results and logs are saved
- Notifications sent if configured

Conditional Execution

Workflows can branch based on conditions:

Example:


[HTTP Request: Check Inventory]
  ↓
[Simple Conditional: Stock Available?]
  ├─ True → [HTTP Request: Process Order]
  └─ False → [SES Email: Notify Out of Stock]

Sequential and Parallel Execution

Nodes can execute:

Sequentially:

One after another in order
Each waits for the previous to complete
Most common execution pattern

In Parallel (with proper setup):

Multiple branches execute simultaneously
Use signals to coordinate and merge results
Efficient for independent operations

Use Cases for Business Workflow Test Automation

1. E-commerce Order Processing

Workflow:


1. UI Test: User searches and adds product to cart
2. HTTP Request: Verify cart contents via API
3. UI Test: User proceeds to checkout
4. HTTP Request: Validate shipping options
5. UI Test: User enters payment information
6. HTTP Request: Process payment via payment gateway
7. HTTP Request: Create order in order service
8. Database: Verify order stored correctly
9. SES Email: Send confirmation email
10. UI Test: Verify confirmation page displays

What It Validates:

Complete user journey works end-to-end
Data flows correctly between UI and backend
Payment processing integrates properly
Order is created and stored correctly
Customer receives confirmation

2. User Registration and Onboarding

Workflow:


1. UI Test: User fills registration form
2. HTTP Request: Create user account via API
3. Database: Verify user record created
4. SES Email: Send verification email
5. Wait Activity: Simulate email delivery delay
6. UI Test: User clicks verification link
7. HTTP Request: Activate account via API
8. Database: Verify account status updated
9. UI Test: User completes profile setup
10. HTTP Request: Get complete user profile

What It Validates:

Registration form works correctly
Account is created in database
Email verification flow functions
Profile setup completes successfully
User data is consistent across systems

3. Multi-Step Approval Process

Workflow:


1. HTTP Request: Submit request for approval
2. Database: Store request details
3. Compliance Approval: Email to first approver
4. Event Conditional: Wait for approval (timeout: 2 days)
5. Simple Conditional: First approval granted?
   ├─ Yes → Continue
   └─ No → [SES Email: Notify rejection]
6. Compliance Approval: Email to second approver
7. Event Conditional: Wait for approval (timeout: 2 days)
8. Simple Conditional: Second approval granted?
   ├─ Yes → [HTTP Request: Process approved request]
   └─ No → [SES Email: Notify rejection]
9. Database: Update request status
10. SES Email: Notify requester of final decision

What It Validates:

Approval routing works correctly
Timeouts function as expected
Each approval level is enforced
Notifications are sent appropriately
Request status is tracked accurately

4. Payment Processing with Reconciliation

Workflow:


1. HTTP Request: Initiate payment
2. Wait Activity: Simulate processing delay
3. HTTP Request: Check payment status
4. Loop Over Items: Retry check up to 5 times
5. Simple Conditional: Payment successful?
   ├─ Yes → Continue
   └─ No → [Signal: Trigger refund workflow]
6. Database: Log transaction
7. HTTP Request: Update order status
8. SES Email: Send payment confirmation
9. UI Test: Verify receipt page

What It Validates:

Payment gateway integration works
Retry logic handles delays
Transaction logging is accurate
Order status updates correctly
Customer receives confirmation

5. Data Synchronization Workflow

Workflow:


1. HTTP Request: Fetch data from source system
2. Database: Store data in staging table
3. Loop Over Items: Process each record
   └─ For each record:
      a. Simple Conditional: Validate data format
      b. HTTP Request: Transform data via service
      c. Database: Insert into target table
      d. Signal: Increment success counter
4. Database: Run data validation queries
5. SES Email: Send summary report

What It Validates:

Data extraction works correctly
Each record is processed
Data transformation is accurate
Target database is updated
Data integrity is maintained

Benefits of Business Workflow Test Automation

1. Complete End-to-End Testing

Before:

API tests validate backend
UI tests validate frontend
Gap between them

With Workflows:

Test entire business process
Validate data flow across systems
Ensure UI and API work together
Catch integration issues

2. Realistic Test Scenarios

Before:

Tests are artificial and isolated
Don’t reflect real user journeys
Miss timing and coordination issues

With Workflows:

Tests mirror actual business processes
Include real-world timing and dependencies
Validate complete user experiences
Test asynchronous operations

3. Reduced Manual Testing

Before:

Complex scenarios require manual coordination
QA manually chains different tests
Time-consuming and error-prone

With Workflows:

Automated end-to-end execution
No manual intervention needed
Consistent execution every time
Faster regression testing

4. Better Test Coverage

Before:

Hard to test complex multi-step processes
Integration points often untested
Edge cases in workflows overlooked

With Workflows:

Easy to model complex processes
All integration points tested
Conditional paths validated
Comprehensive coverage

5. Faster Feedback

Before:

Separate tests take longer to run
Results come from different tools
Hard to correlate failures

With Workflows:

Single execution tests everything
Immediate feedback on business process health
Clear failure points
Quick root cause identification

6. Improved Collaboration

Before:

Developers test APIs
QA tests UI
Business logic split between teams

With Workflows:

Visual workflows everyone understands
Business processes clearly represented
Shared understanding of testing
Cross-functional collaboration

7. Maintenance Efficiency

Before:

Update API tests
Update UI tests separately
Keep them synchronized manually

With Workflows:

Update workflow once
Changes propagate through the flow
Single source of truth
Easier maintenance

Getting Started

Prerequisites

Before creating business workflows:

API collections ready for testing
UI test scenarios created and working
Test data prepared
Authentication configured for services
Database access if needed
Email service configured if sending emails

First Workflow

Start Simple:

Choose a basic business process (e.g., user login)
Identify the steps (UI login + API validation)
Create workflow in Modeler
Add and configure nodes
Connect nodes
Test and validate

Expand Gradually:

Add more steps
Include conditionals
Add error handling
Incorporate notifications
Test edge cases

Best Practices

Design Workflows:

Model actual business processes
Keep workflows focused and logical
Use clear, descriptive node names
Document complex conditionals
Plan error handling

Configure Nodes:

Set appropriate timeouts
Add meaningful pre/post-scripts
Validate data at each step
Use variables effectively
Handle edge cases

Test Workflows:

Test each node individually first
Validate the complete flow
Test error scenarios
Verify data flow
Check timing and coordination

Maintain Workflows:

Update when business processes change
Keep documentation current
Review and optimize regularly
Archive obsolete workflows
Version control workflows

Components Overview

Modeler Components

Canvas: Visual workspace for building workflows
Node Library: Available node types to add
Properties Panel: Configure selected node
Connection Tools: Link nodes together
Toolbar: Save, validate, run controls

Runner Components

Execution Status: Current workflow state
Node Progress: Which nodes completed/failed
Variable Inspector: View data flow
Logs Panel: Detailed execution logs
History: Past workflow executions
Metrics: Performance data

Summary

Business Workflow Test Automation in E2E Test Automation enables you to:

Automate complete business processes end-to-end
Combine UI and API testing in single workflows
Model real-world scenarios with conditional logic
Validate data flow across multiple systems
Test integration points between services
Coordinate timing with waits and events
Handle approvals and notifications automatically
Monitor execution in real-time
Maintain comprehensive logs for troubleshooting

By bridging the gap between UI and API testing, Business Workflow Test Automation ensures that your application works correctly not just in individual components, but as a complete, integrated system that delivers value to your users.

From isolated tests to integrated workflows—test what matters: your complete business processes.
